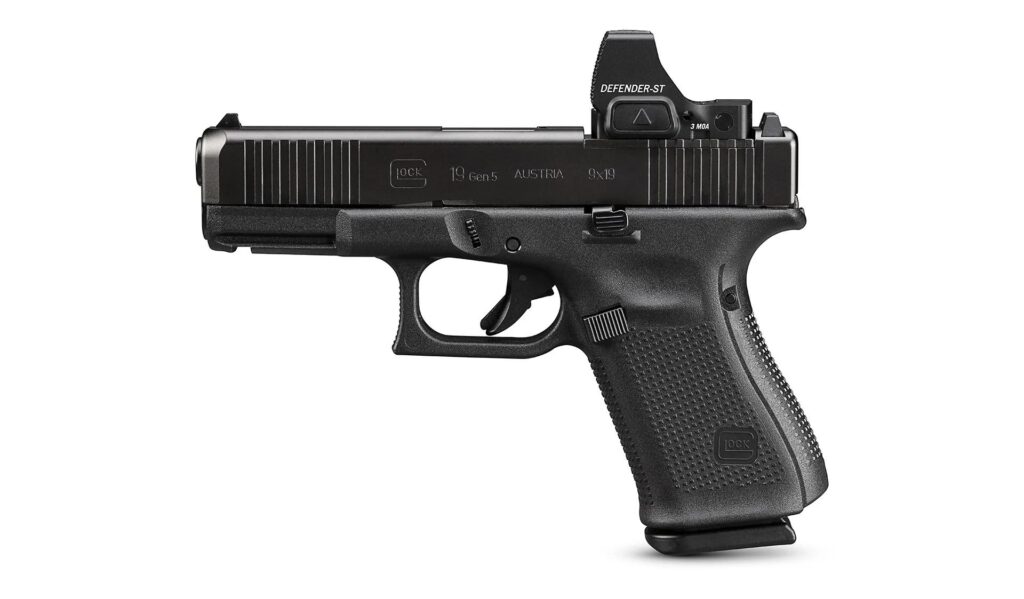

Vortex has long been one of my go-to makers for quality optics. When I moved to carrying pistols with red dots, I naturally gravitated to Vortex. The new Defender ST is a different animal from the Defender CCW: it’s larger, has a taller/wider window, and uses a footprint better suited to full-size pistols, which is welcome when you most often carry a Glock 17, 19, or 19X.
Below, I’ll cover what matters: fit and finish, controls and battery, night-vision compatibility, mounting and zeroing, how it shot on the range, and my verdict.
What it is — quick summary

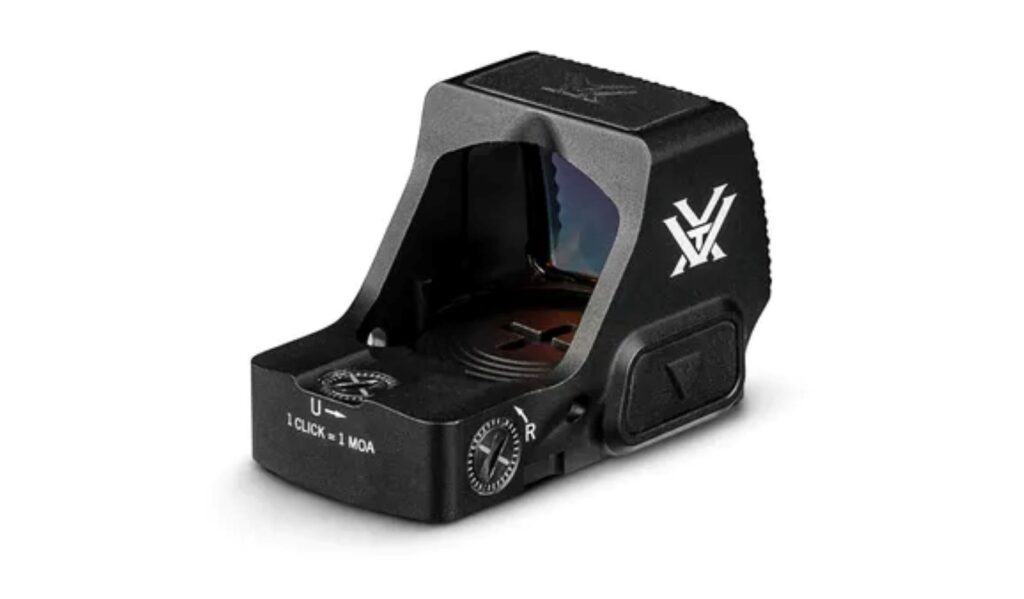

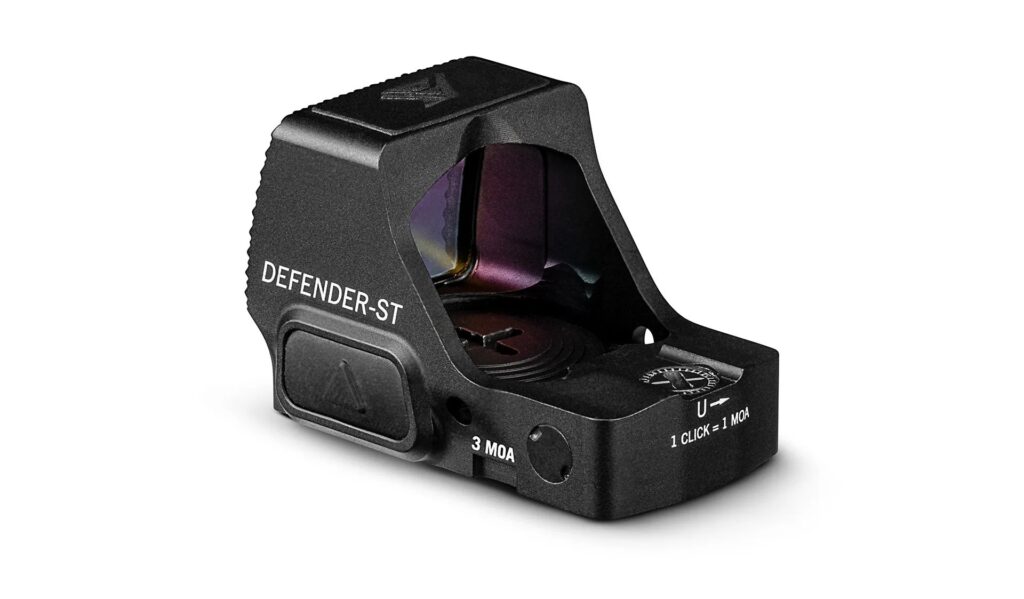

The Defender ST is a compact reflex sight featuring a larger viewing window than the CCW line, a DeltaPoint-style footprint, a 3 MOA dot option, a top-loading CR2032 battery, and a range of user-friendly features, including a Fast-Rack non-slip cover and a Shock Shield. Battery life is rated at 25,000 hours at moderate settings.
What I liked (and why)
- Bigger window, better sight picture. The taller/wider window gives a clearer, less tunneled view for fast target acquisition on larger pistols.
- Fast-Rack interface & Shock Shield. The cover features a non-slip surface for use as a racking interface and an integrated guard to help prevent impact damage.
- Top-loading battery. Changing the CR2032 is easy — you don’t have to remove the sight or re-zero.
- Night-vision modes. Two NV settings put the emitter in an IR range that won’t hose your night vision when used with NV gear.
- Good brightness range. Twelve brightness settings (two NV) let you dial the dot in for indoor, outdoor, and NV use. I tested ten daylight settings and found the range very usable.
- Solid build and controls. Windage/elevation clicks are positive and predictable; each click is 1 MOA at 100 yards (~1 inch).
What to know about the electronics
Vortex advertises a higher refresh rate on the Defender ST. Practically, that means the dot is less prone to perceived blur or starburst during rapid transitions — a modest but welcome advantage in speed shooting. The sight auto-shuts after ten minutes of inactivity to save battery. Brightness at max will reduce the 25,000-hour life rating, so plan on an annual battery change with regular carry/use.
Controls and user interface
- Adjustment buttons are placed on the sides of the housing (easy access, not cramped).
- Lockout feature: hold the control button for three seconds to lock; repeat to unlock.
- Twelve brightness settings, including two NV infrared settings for night-vision compatibility.
Mounting & footprint

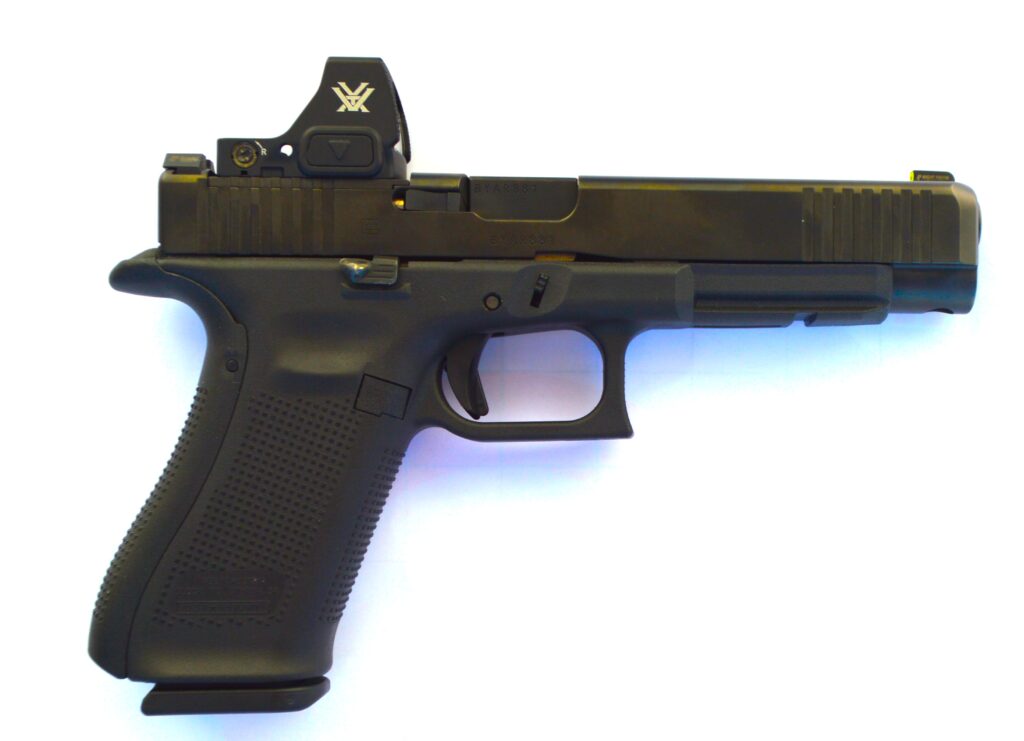

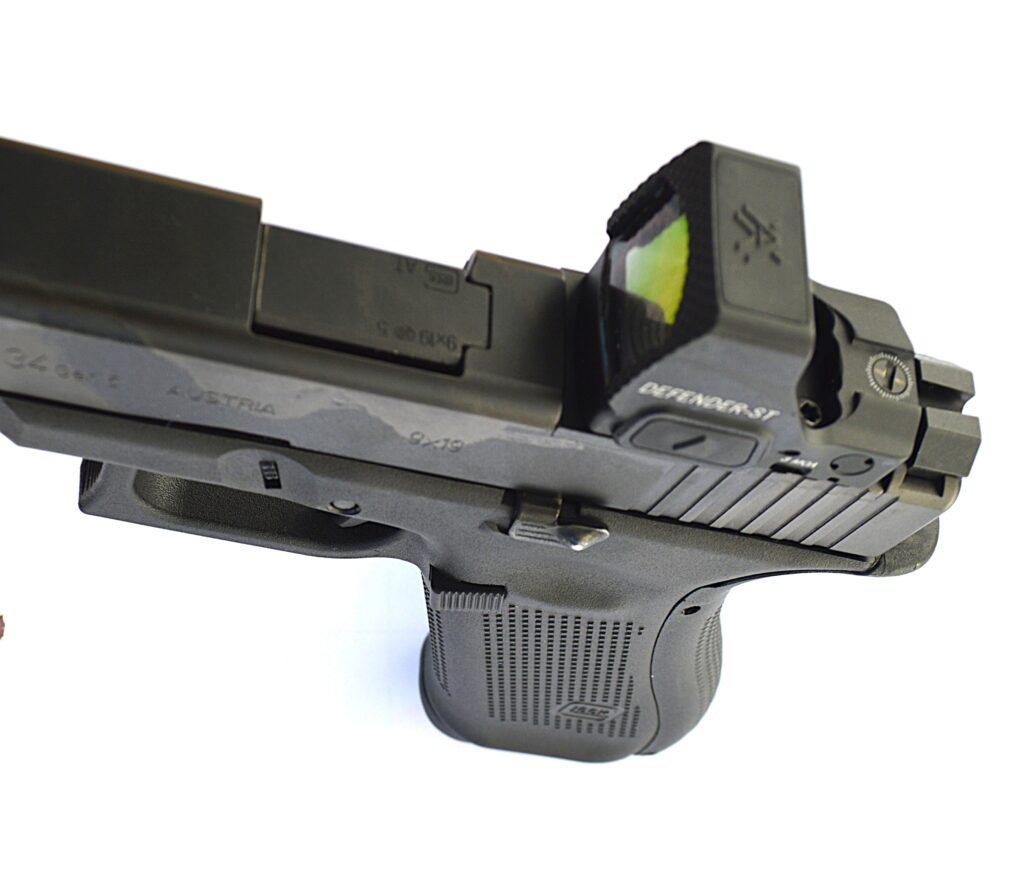

The Defender ST uses the DeltaPoint/DP footprint (Vortex supplies a Glock MOS plate and a Picatinny mount). I mounted it to a Glock 34 using the supplied hardware and tightened the screws alternately for even torque. If you want an even stiffer, proven plate, consider an Athena Precision Glock MOS plate — it’s a premium upgrade favored by many law-enforcement builds.
Zeroing and point-of-impact considerations
I prefer a 25-yard zero for pistols. With a 25-yard zero, you’ll typically see ≤3 inches deviation between the dot and point-of-impact from 0–25 yards. If you zero at 7 yards, expect about 6 inches of drift at 25 yards. Each click equals ~1 MOA; zeroing was straightforward — I started at 10 yards, set vertical first, then windage, and tuned at 25 yards.
Range test — accuracy & performance

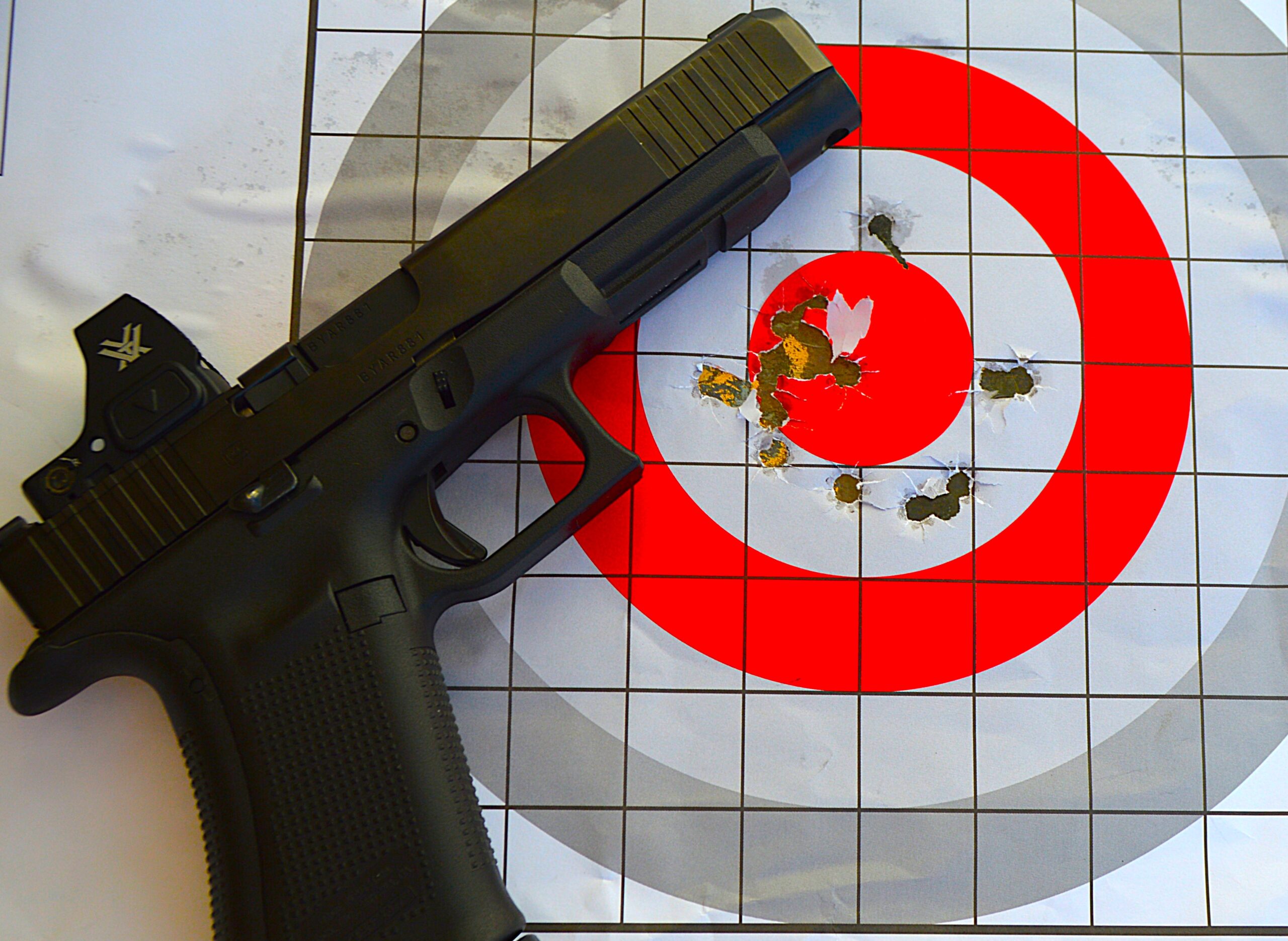

I ran rapid drills at 7, 10, and 15 yards with Fiocchi 147-gr FMJ and had clean, fast hits on hanging targets. For precision testing, I used Covert X defensive loads from a solid bench rest at 25 yards using a Birchwood Casey rest: two five-shot groups averaged 2.2 inches. That’s very good for a duty/carry pistol and demonstrates the red-dot’s benefits for both speed and absolute accuracy.
| Feature | Spec |
|---|---|
| Magnification | 1× |
| Dot options | 3 MOA (tested) |
| Battery | CR2032, top-load |
| Battery life | Up to 25,000 hours (lower at max brightness) |
| Auto-off | 10 min inactivity |
| Weight (with battery) | 1.5 oz |
| Footprint | DeltaPoint / DP (Glock MOS plate included) |
| Brightness settings | 12 (10 daylight, 2 NV) |
| Eye relief | Unlimited |
Final verdict
The Vortex Defender ST earns a clean bill of health. It’s solidly constructed, thoughtful in features (Fast-Rack, Shock Shield, top-loading battery, NV modes), and it delivers both speed and accuracy in real-world use. If you run a full-size or duty pistol and want a larger viewing window with modern ergonomics, the Defender ST is a very good choice.
